355nm/532nm/1064nm Chromatic Laser Marking System for Stainless Steel

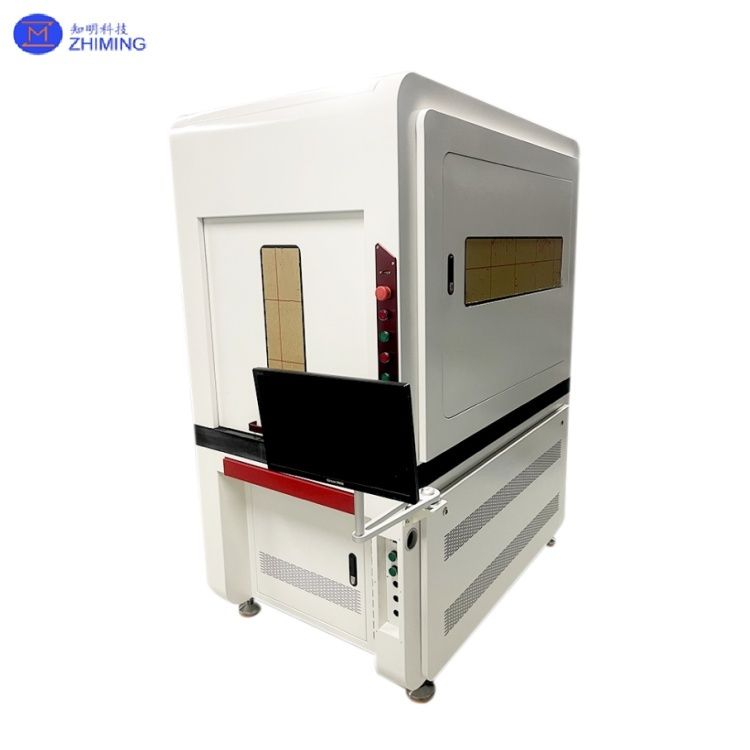

صورة كبيرة : 355nm/532nm/1064nm Chromatic Laser Marking System for Stainless Steel

تفاصيل المنتج:

Place of Origin:	CHINA
اسم العلامة التجارية:	ZMSH
إصدار الشهادات:	rohs
Model Number:	Chromatic Laser Processing Equipment

شروط الدفع والشحن:

Minimum Order Quantity:	3
الأسعار:	by case
Packaging Details:	package in 100-grade cleaning room
Delivery Time:	3-6 months
Payment Terms:	T/T

مفصلة وصف المنتج

Wavelength:	355nm/532nm/1064nm switchable	Single pulse energy:	≤2mJ
Positioning accuracy:	±5μm	Power consumption:	3.5kW
Applications:	Premium Electronics,Medical Devices
إبراز:	chromatic laser processing equipment for stainless steel,laser processing equipment for glass materials,ceramic laser processing equipment with warranty , laser processing equipment for glass materials , ceramic laser processing equipment with warranty

Chromatic Laser Processing Equipment Overview

Chromatic Laser Processing Equipment for Stainless Steel/Glass/Ceramic Materials

Chromatic laser processing equipment is a precision machining system based on ultrashort pulse laser technology, achieving micron-level precision in color marking, microstructure processing, and functional surface treatment through selective interaction between nanosecond/picosecond pulsed lasers and materials. The system integrates tunable wavelength lasers (1064nm/532nm/355nm), high-precision galvanometer systems, and real-time color monitoring technology, enabling durable color pattern processing on stainless steel, titanium alloys, glass, ceramics and other materials, covering over 90% of the Pantone color gamut. Compared to traditional anodizing or painting processes, it offers significant advantages including consumable-free operation, non-contact processing, and environmental friendliness, making it widely applicable in high-value-added product surface treatments for consumer electronics, jewelry, medical devices and other fields.

Chromatic Laser Processing Equipment Working Principles

1. Laser-Material Interaction Mechanism:

Precise control of laser wavelength (355nm/532nm/1064nm) generates plasmon resonance on material surfaces, forming 50-500nm thick oxide interference films on metals for structural coloration through thickness modulation.
For non-metallic materials, laser-induced periodic surface structures (LIPSS) create visual colors through light diffraction and interference.

2. Core Subsystem Coordination:

Optical System: MOPA fiber laser + acousto-optic Q-switching enables independent control of pulse frequency (1-2000kHz) and energy.
Motion System: High-speed galvanometer (10m/s scan speed) + precision linear motor stage (±2μm positioning repeatability).
Color Control System: Online spectrometer monitors chromaticity values in real-time, dynamically adjusting laser parameters (power/frequency/scan spacing) via PID algorithm.

3. Process Flow:

Material pretreatment → Laser parameter modeling → 3D path planning → Interference film growth → Color quality inspection → Post-processing enhancement.

Chromatic Laser Processing Equipment Features

1. True Color Technology:

Proprietary "laser parameter-color mapping algorithm" enables 16 million color display on 304 stainless steel.
Color durability passes ISO 105-B02 testing with ΔE<3 after 500-hour xenon lamp aging test.

2. Intelligent Processing System:

AI vision system automatically recognizes workpiece curvature for focal compensation (±0.1mm surface adaptation accuracy).
Supports 3D relief processing with 0.1μm depth resolution.

3. Eco-Friendly Manufacturing:

Reduces chemical wastewater by 95% compared to electroplating.
Energy consumption <0.5kWh per piece (1/8 of anodizing process).

4. Material Adaptability:

Metals: Color marking on stainless steel/titanium/aluminum (hardness variation HV±5%).
Non-metals: Sapphire glass engraving, ceramic glaze coloring (heat-affected zone <10μm).

Chromatic Laser Processing Equipment Application Fields

355nm/532nm/1064nm Chromatic Laser Marking System for Stainless Steel 2

1. Premium Electronics:

Smartphone frame color logos.
Laptop lid panoramic gradient coloring (micron-level color transitions).

2. Medical Devices:

Surgical instrument color coding.
Biocompatible surface treatment for titanium orthopedic implants.

3. Automotive Industry:

Laser coloring for wood-grain interior trim (scratch resistance ≥4H).
Dual-color gradient emblems.

355nm/532nm/1064nm Chromatic Laser Marking System for Stainless Steel 3

4. Luxury Manufacturing:

Micron-scale color relief on precious metal jewelry (10-year color durability on 18K gold).
Sapphire watch glass inner engraving.

5. Anti-Counterfeiting Packaging:

Holographic laser engraving on liquor caps (dynamic color-shift effects).
Hidden QR codes on luxury packaging (angle-dependent visibility).

Chromatic Laser Processing Equipment FAQ

1. Q: What materials can be processed with chromatic laser marking systems?
A: Chromatic lasers permanently mark stainless steel, titanium, glass, and ceramics with Pantone-matched colors through nano-scale oxide layer control.

2. Q: How durable are laser-generated colors compared to traditional methods?
A: Laser colors exhibit 10x better wear resistance than anodizing (ISO 105-B02 certified) with no fading after 500+ hours UV exposure.

Tag: #Chromatic Laser Processing Equipment, #Customized, #Stainless Steel/Glass/Ceramic Materials
