| الاسم التجاري: | ZMSH |
| رقم الطراز: | Silicon004 |
| الـ MOQ: | 25 قطعة |
| السعر: | By case |
| وقت التسليم: | في 30 يومًا |
| شروط الدفع: | تي / ت |

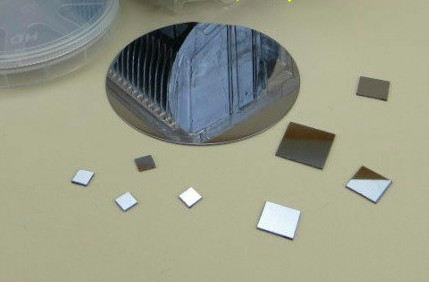

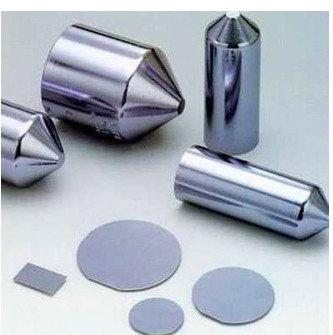

IC Silicon Wafer is a kind of high-quality semiconductor wafer used in integrated circuit (IC) production. It features high quality and reliable performance, making it the ideal choice for IC production. The IC Silicon Wafer is available in different sizes, including 1inch, 2inch, 3inch, 4inch, 6inch, 8inch and 12inch. It also features different resistivity levels, ranging from 1 to 10 ohm, and dopants of P-type or N-type. The IC Silicon Wafer also offers excellent flatness of less than 50um and warp of less than 20um. What's more, the IC Silicon Wafer is specially designed for SOI silicon wafers, making it perfect for 4inch, 6inch and 8inch SOI wafers. For high-end IC production, the 6inch silicon wafer is the ideal choice.
| Property | Value |
|---|---|
| Defects | None |
| Orientation | (100),(110),(111) |
| Size | 1inch, 2inch ,3inch ,4inch, 6inch ,8inch ,12inch |
| Test | Yes |
| Particle | <30/cm2 |
| Thickness | 0.28/ 0.35/ 0.5/ 0.525/ 0.625/ 0.7/ 0.725 |
| Warp | <20um |
| Dopant | P-type /N-type |
| Flatness | <50um |
| Surface Finish | SSP/DSP |
| Si3Nx Coating Wafer | Yes |
| LPCVD | Yes |
| PECVD SIO2 Wafers | Yes |
IC Silicon Wafers, with Brand Name ZMSH and Model Number Silicon004, are produced in China and certified by ROHS. The minimum order quantity is 25PC, and the price is set on a case-by-case basis. The packaging details are 25pc cassette box/jar box. The delivery time is within 30days and the payment terms are T/T. The supply ability is 2000pc/months. The Dopant is P-type or N-type, and the Flatness is <50um. The Thickness is 0.28/ 0.35/ 0.5/ 0.525/ 0.625/ 0.7/ 0.725. Particles are <30/cm2. These IC Silicon Wafers are especially suitable for SOI silicon wafer applications, such as 4inch 6inch 8inch SOI wafers and 6inch silicon wafers.
Product Name: IC Silicon Wafer
Brand Name: ZMSH
Model Number: Silicon004
Place of Origin: CHINA
Certification: ROHS
Minimum Order Quantity: 25PC
Price: By case

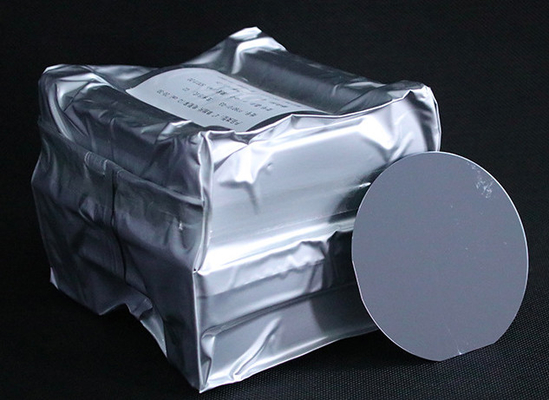

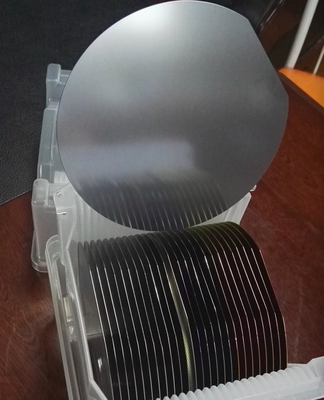

Packaging Details: 25pc cassette box/jar box
Delivery Time: in 30days
Payment Terms: T/T
Supply Ability: 2000pc/months
Surface Finish: SSP/DSP
Test: Yes
Defects: None
Particle: <30/cm2
Features: PECVD SIO2 wafers, SiO2 coating substrate, SOI silicon wafer.
